Varmilo Kassai

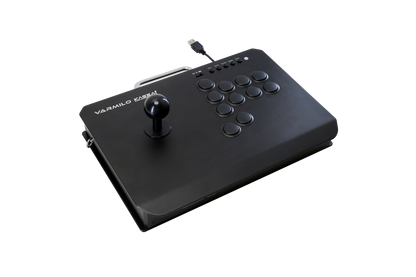

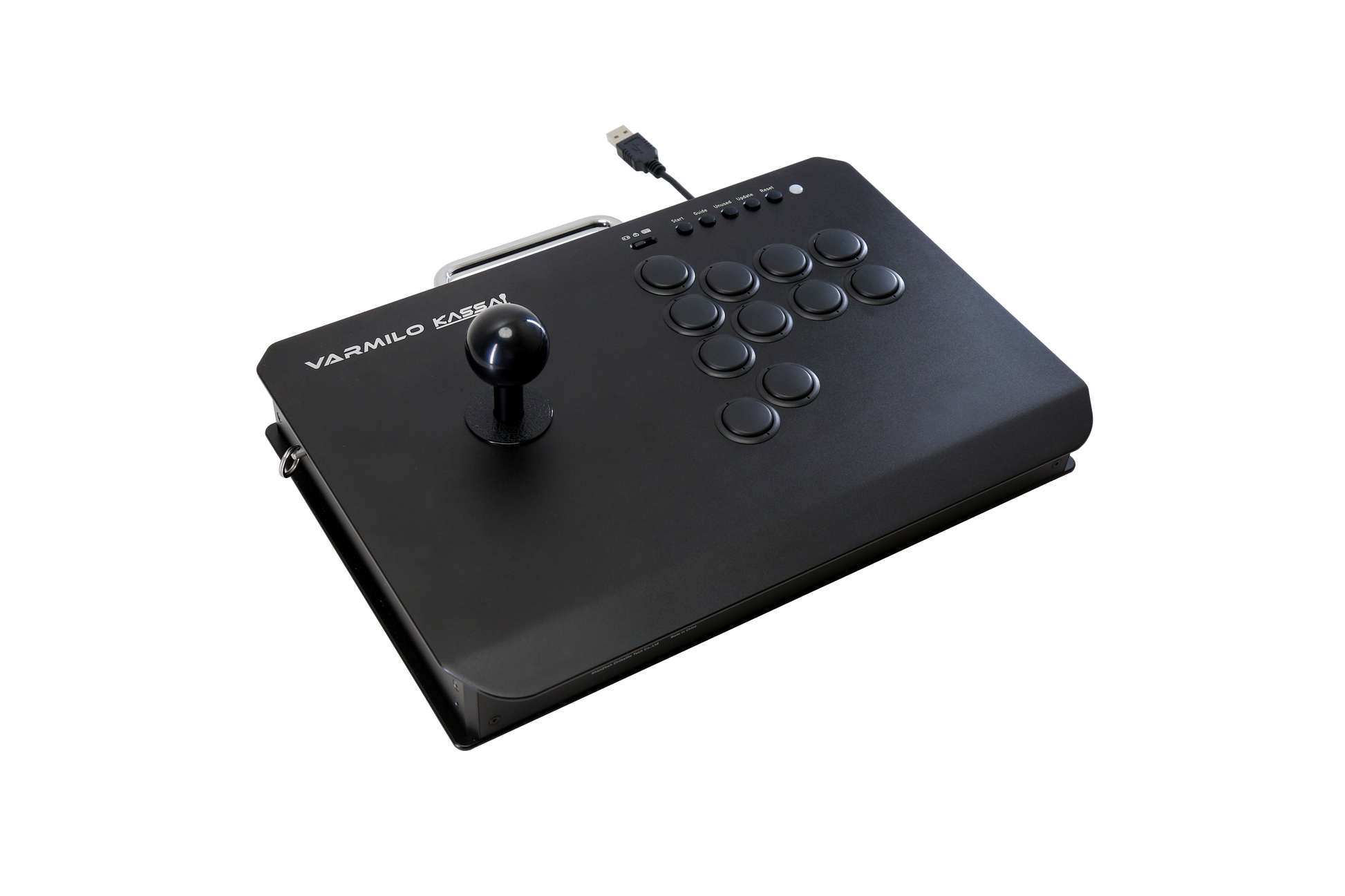

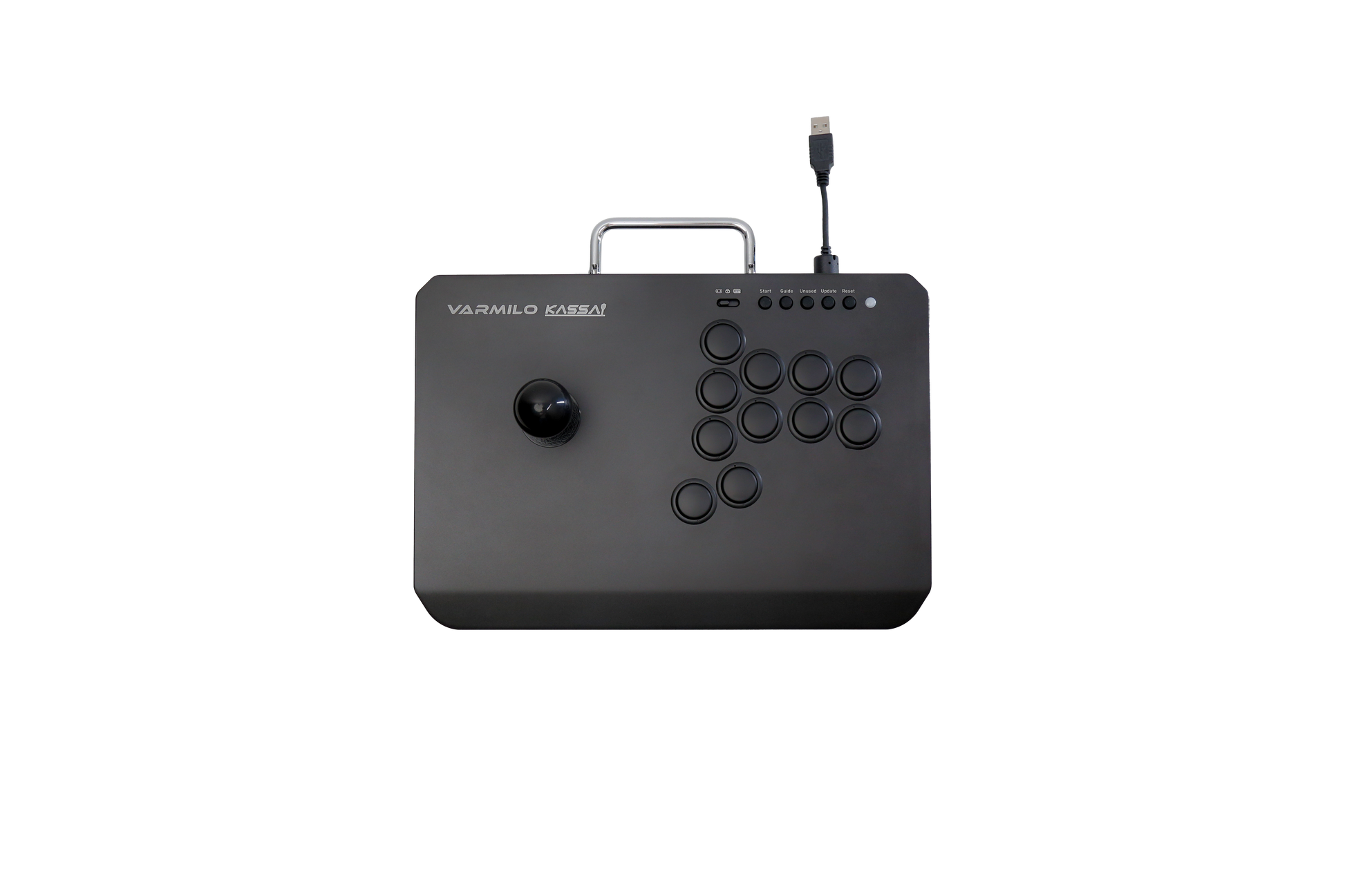

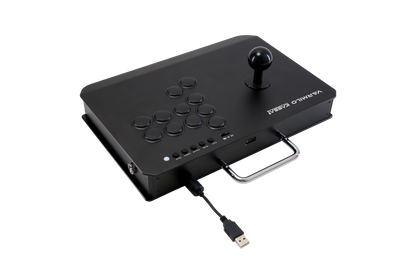

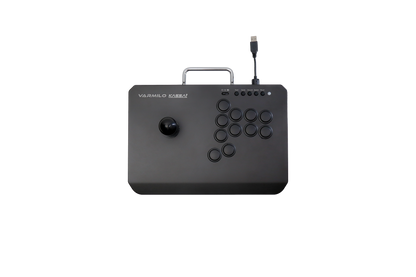

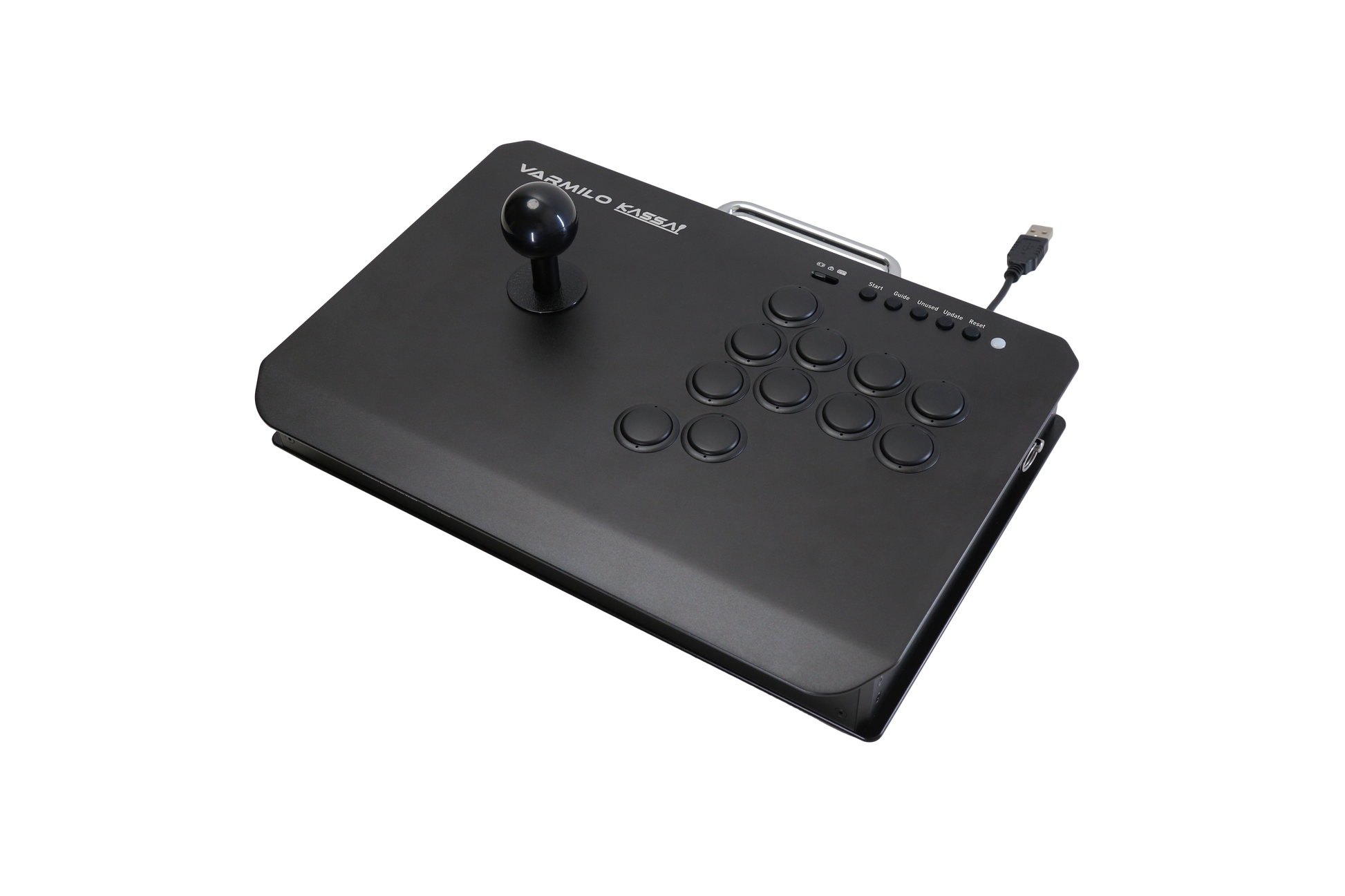

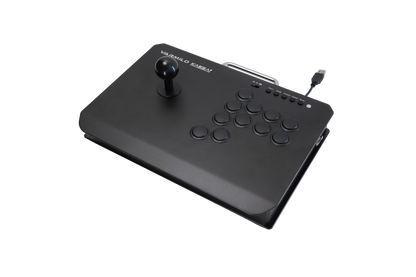

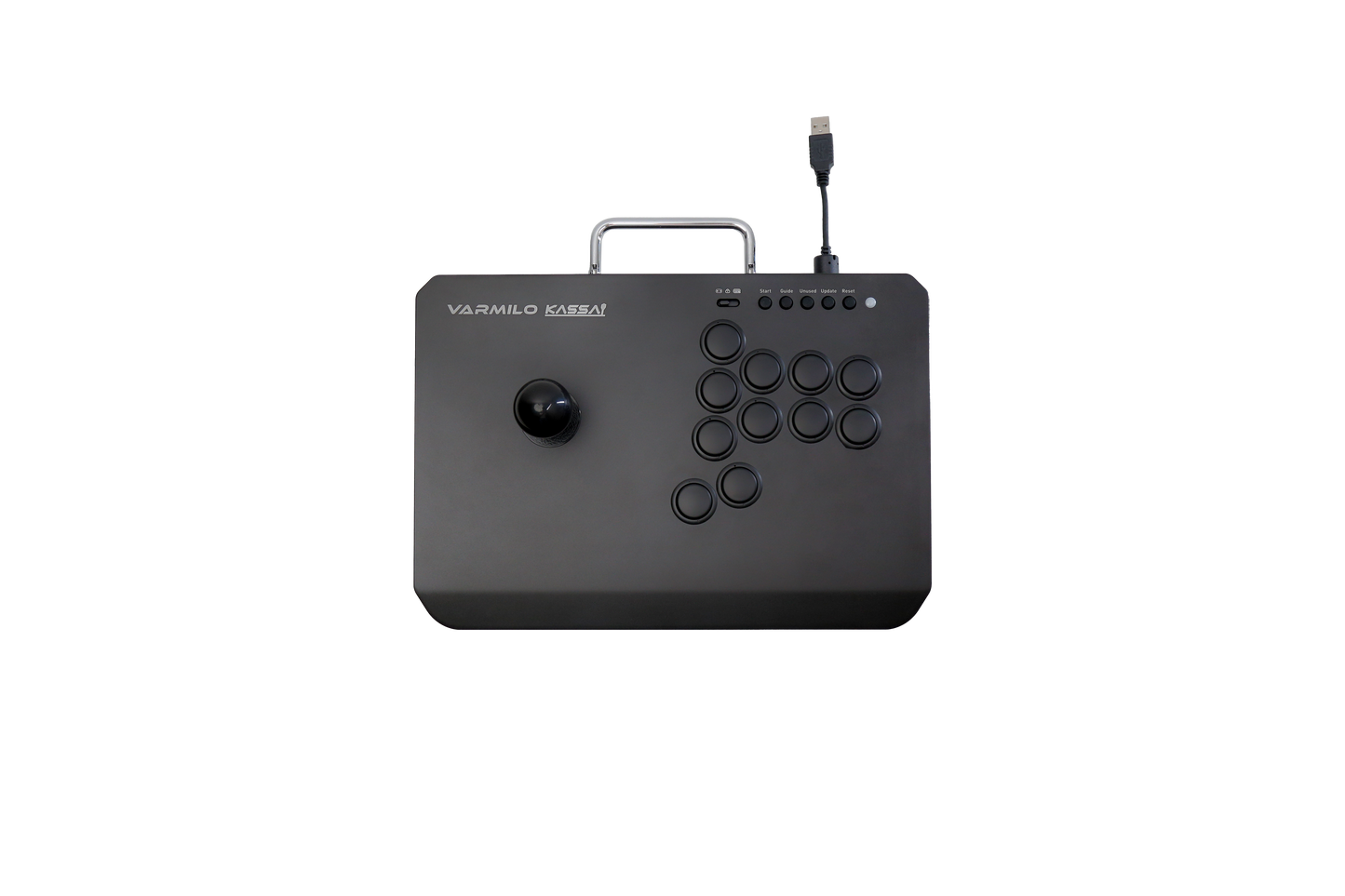

KASSAI Arcade Stick Joystick Controller

Quick Release Buttons
Buttons and switches are integrated.
This reduces the shaking of the buttons and improves stability and durability.
The buttons and switches can be quickly replaced with the provided tool.
Align the hole, rotate it, and then turn KASSAI upside down to remove the button.

Pre-press buttons, 1.5mm travel
The switch itself has a travel of 4mm.
The total triggering travel is reduced to 1.5mm.
There are 1.0mm and 2.0mm physical travel buttons available by special order.

Effortless 2-Meter Reach & Auto-Rewind Cable
Built-in reel automatically retracts USB cable with a light pull

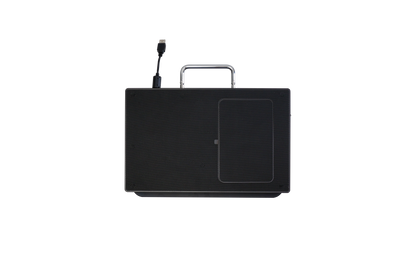

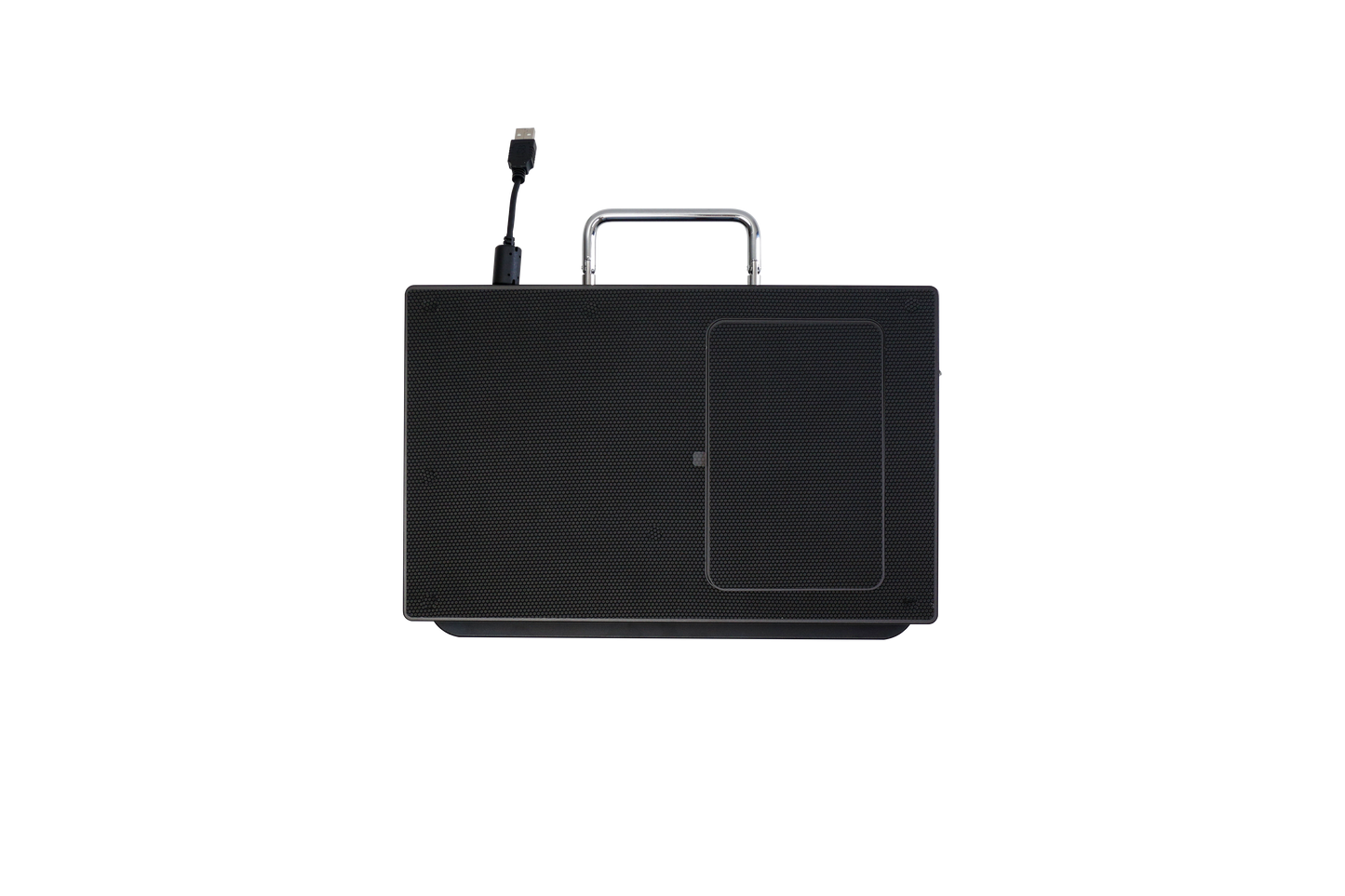

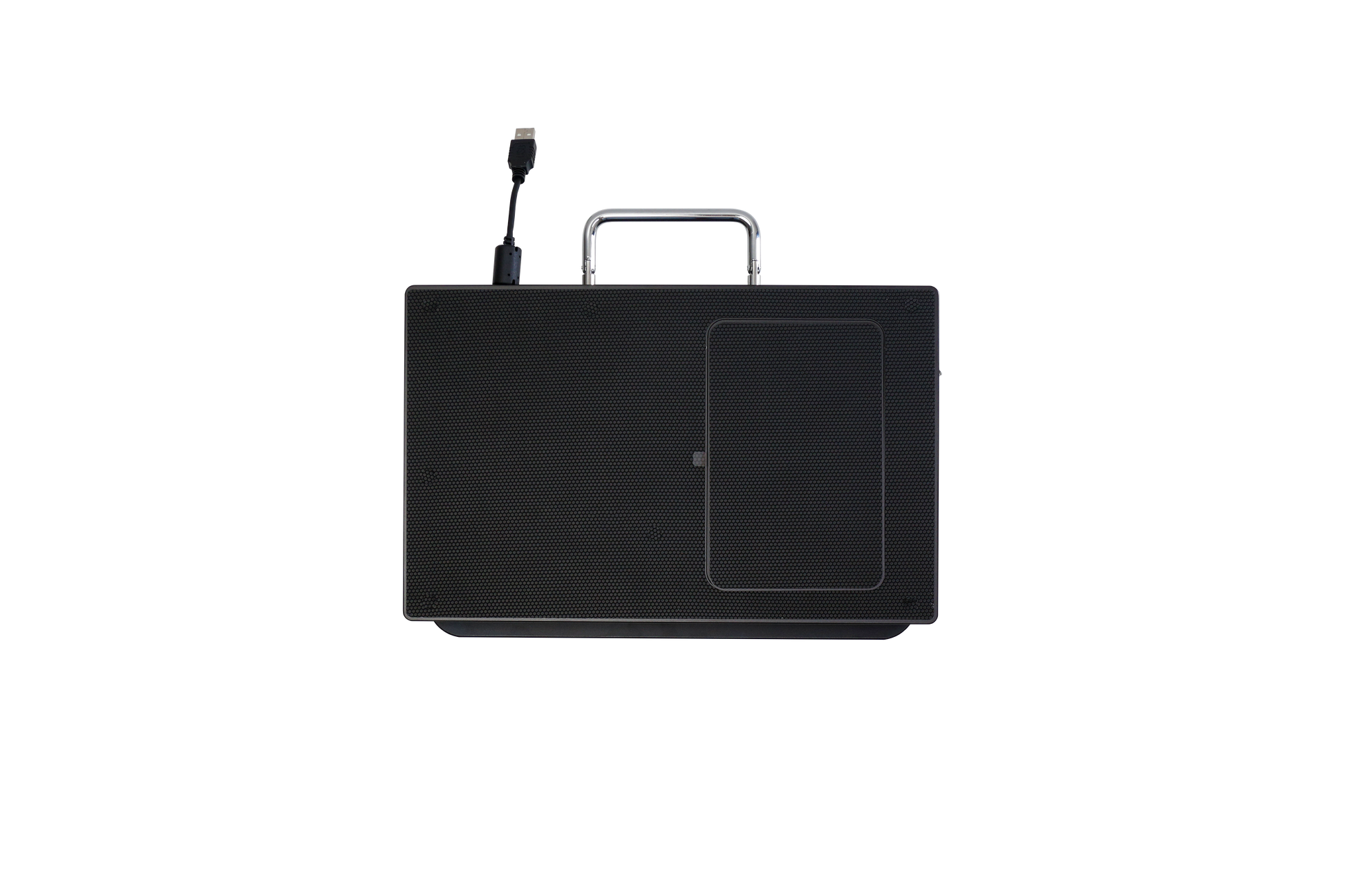

Back Storage
The joystick and buttons can be stored on the back of KASSAI for easy carrying

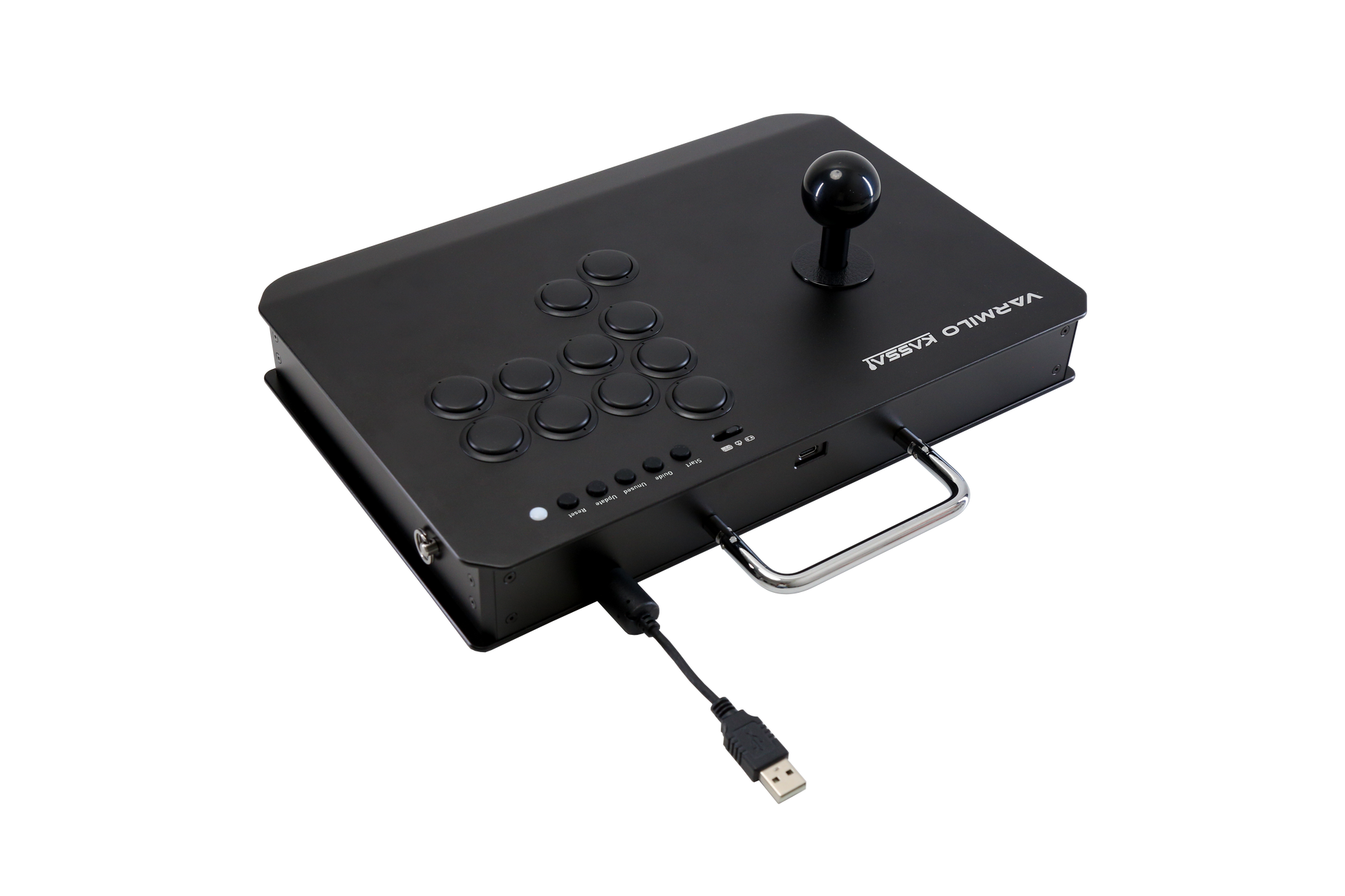

Shoulder strap and handle
This heavyweight product is more portable whether you carry it by hand or on your back than in the box.

Product Specifications
Case: Metal
Keycap: ABS (Golden: PBT)
Joystick: Sanwa JLX-TP-8YT
Dimensions (W x D x H): 318.22 x 219.97 x 46.80 mm
(With joystick: 109.5mm)
Net Weight: 2.48kg
Gross Weight: 3.59kg (Gold: 4.24kg)
Number of buttons: 11
Diameter of the buttons: 22mm
Switch: CHERRY MX Multipoint Silver switch
Initial pressure: 40gf (+10gf-10gf)
End pressure: 50gf (+10gf-10gf)
Travel: 1.5mm (+0.3mm -0.2mm)
Activation point: Adjustable in 0.1mm increments
Reset point: Adjustable in 0.1mm increments
Factory default activation point: 0.3mm (+0.1mm-0.1mm)
Factory default RT: 0.2mm
Product power consumption: 5V 35mAh or less
Response speed: 5ms or less
Polling rate: 1000Hz

Compatible systems:
Standard: PC (Windows®)
Pro: PS4, PS5, NS1, NS2, PC (Windows)

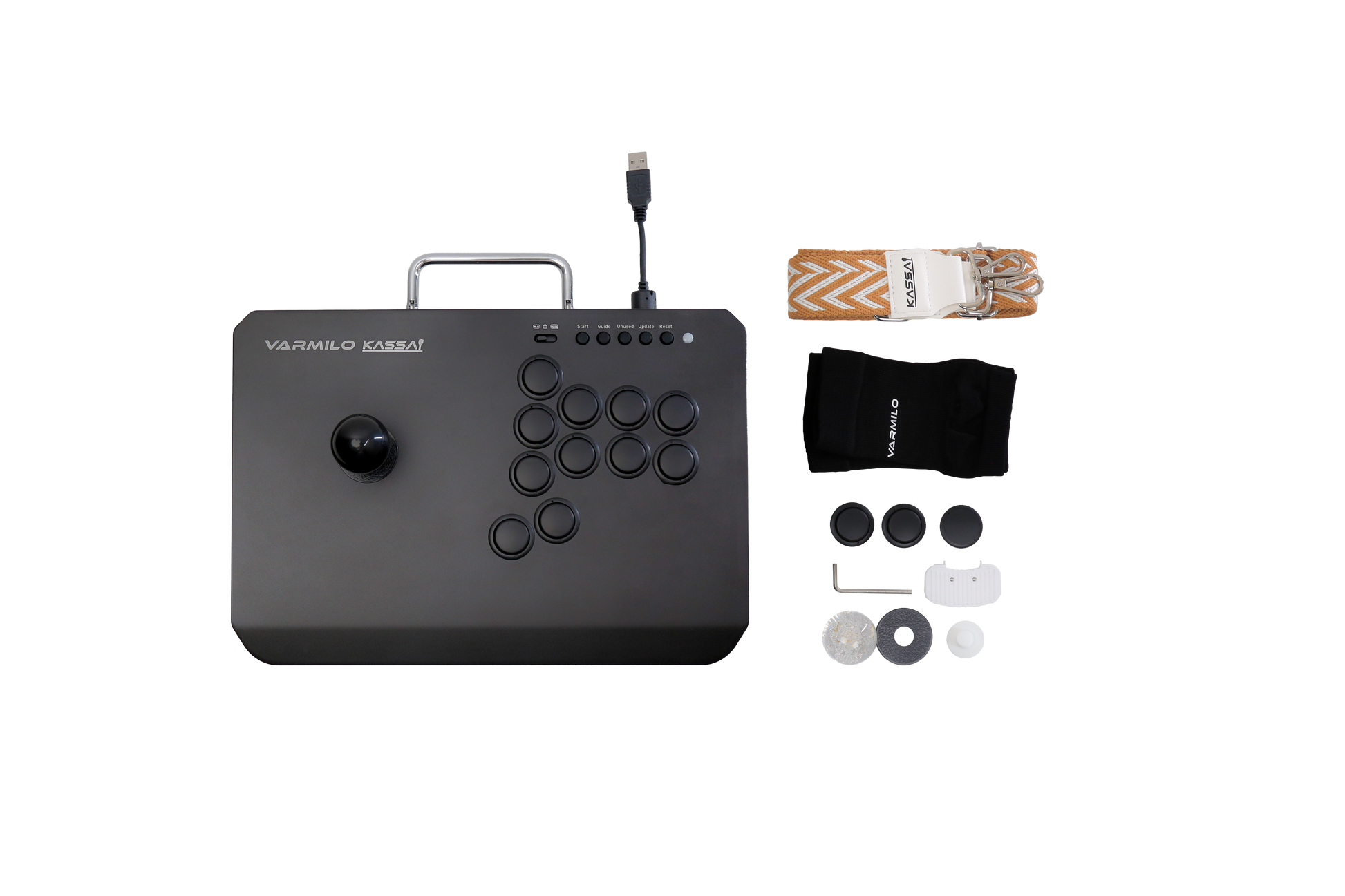

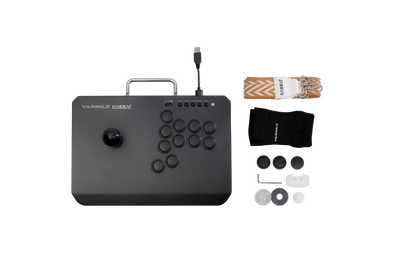

What's in the Box - For Obsidian Black, Sakura, and Sea Melody
- Controller
- Strap
- A pair of wrist guards
- Replacement button * 2
- Blank Button * 1
- Tool for replacing the Ball Top
- Tool for replacing the buttons
- Joystick Ball Top
- Plastic Spacer
- Silicone Joystick Removal Cover

What's in the Box - For Gold Limited Edition
- Controller
- Strap
- A pair of wrist guards
- Replacement button * 14
- Blank Button * 1
- Tool for replacing the Ball Top
- Tool for replacing the buttons
- Joystick Ball Top * 3
- Plastic Spacer * 2
- Silicone Joystick Removal Cover

Varmilo Web Driver

Varmilo developed web drivers for its products, and the first product to use it was FK2.

All you have to do is put the controller into "PC mode", connect it to your PC, and access the website.
There's no need for troublesome tasks like "changing by button operation" or "installing special software."
fk2.varmilo.com
Web Driver Manual
