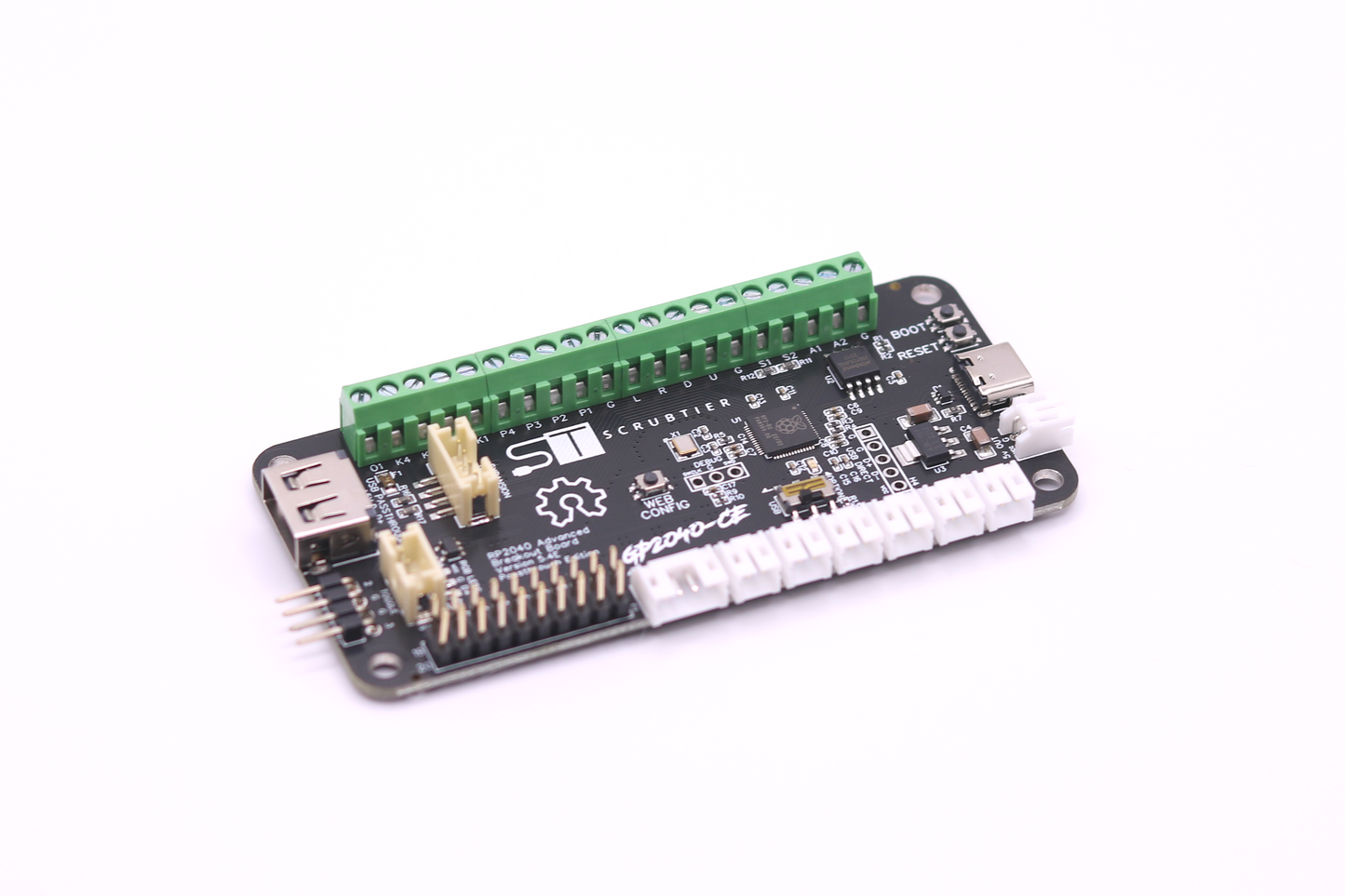

RP2040 Advanced Breakout Board 5.4e (PS5 Passthrough)

The RP2040 Advanced Breakout Board is the official embedded design for the GP2040-CE project.

Designed by TheTrain and n-i-x, the fully embedded design allows access to all of the pins of the RP2040, allowing for unparalleled expansion and customisation of your stick.

This (passthrough) version allows you to play Playstation 5 fighting games with a compatible dongle inserted on the board. For further details, please read the PS5 Passthrough section on the user manual.

Full Documentation

Features:

• USB-C (Cable not included)
• 20+4 Pin header for Brook Style wiring harness
• Header for addressable RGB LED string lights
• Header for external 128x64 monochrome OLED display
• Headers for optional turbo mode/macro buttons.
• Selectable input modes (XInput, DirectInput and Nintendo Switch, PS4*)
• Less than 1 ms of input latency.
• Multiple SOCD cleaning modes - Neutral, Up Priority, Second Input Priority

• Left and Right stick emulation via D-pad inputs
• Open Source firmware powered by the OpenStickCommunity GP2040-CE project
• Pre-flashed with the latest stable GP2040-CE Firmware

Support:

• PC (XInput / DirectInput)

• Android (XInput)
• Nintendo Switch
• HID Keyboard
• Sony PS3/PS4 (DirectInput / Legacy PS3 Support)

• Sony PS4 (with user provided DS4 Keys*)

• Sony PS5 (with compatible passthrough adapter)
• Fully Compatible with the Brook Wingman XB/EX series for Xbox Series S/X and PS4

Downloads:

• GP2040-CE Firmware Release
• Flash Erase / Factory Reset Tool

*PS4 Mode will allow you to use the controller on a PS4 with an 8 minute timeout. If you have the necessary key files to upload via the web interface it will authenticate to a native PS4 device and not time out after 8 minutes.

ScrubTier will never provide these keys and cannot provide any assistance in obtaining these keys.
