GGEZ-Stick

Do you need a clean, simple and space efficient way to make your own DIY fightstick or stickless controller?

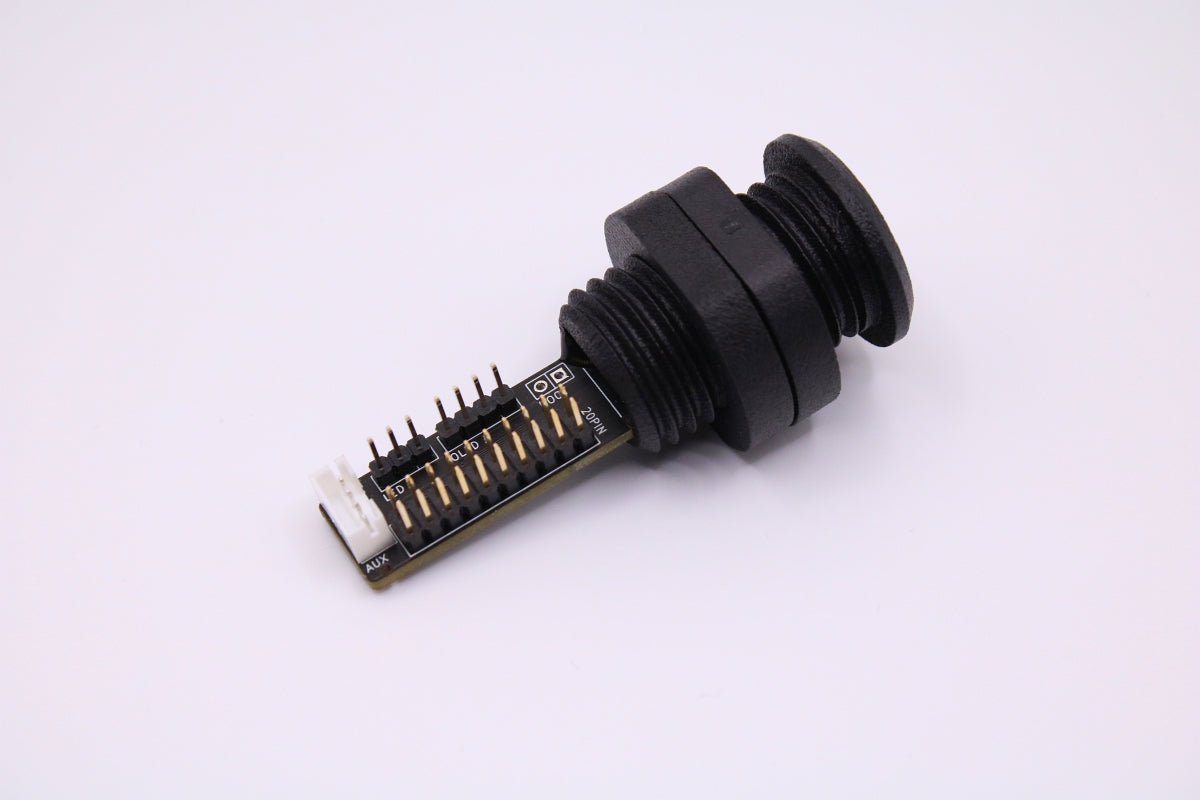

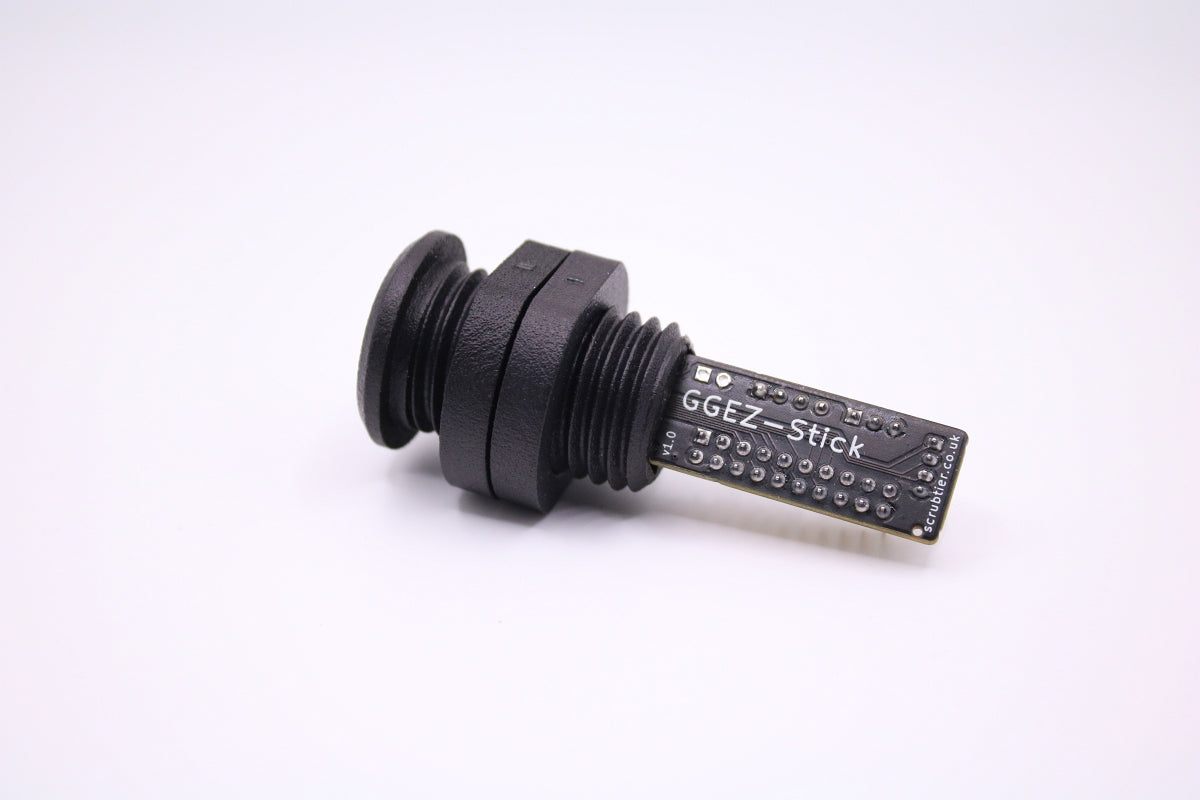

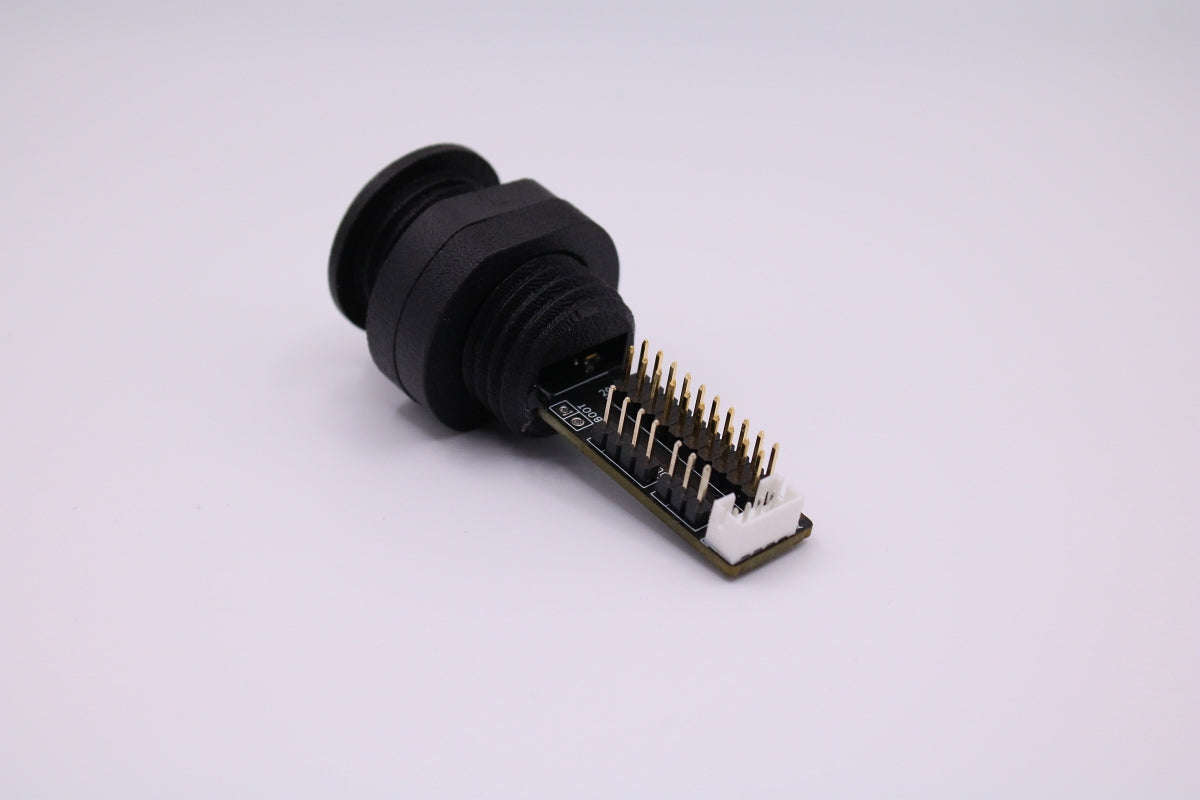

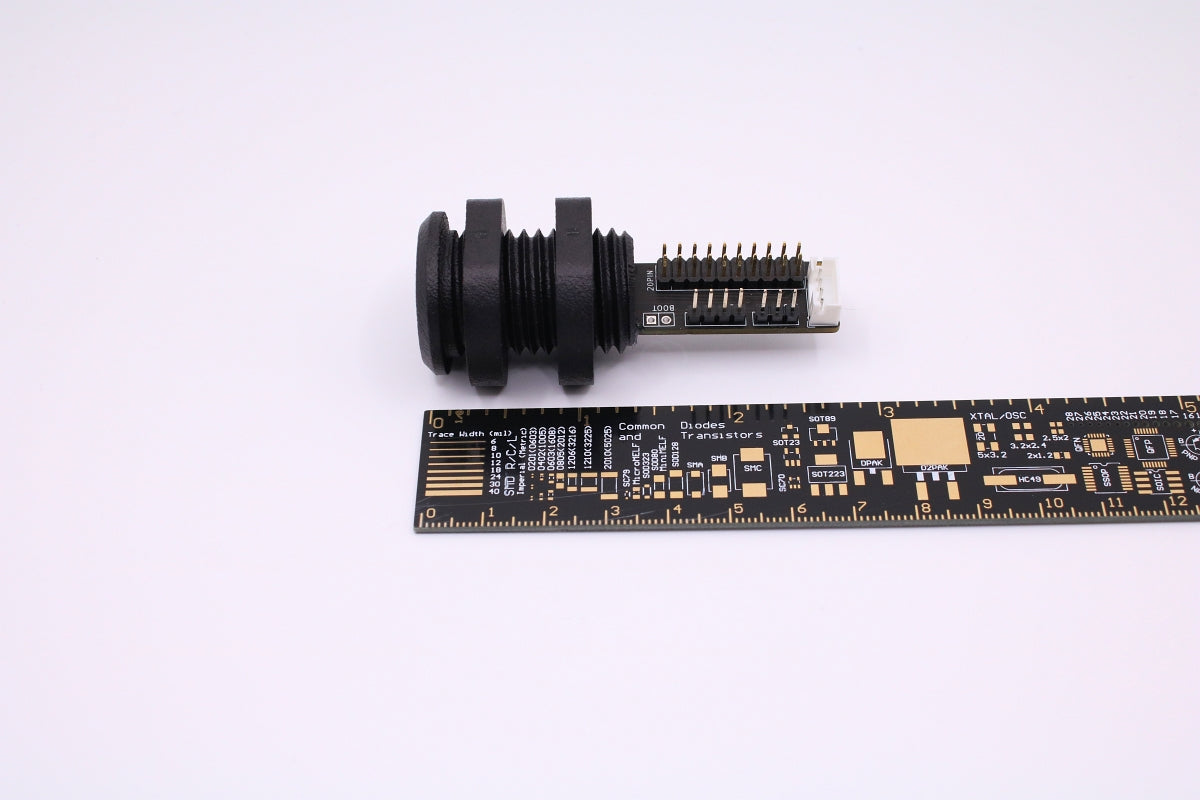

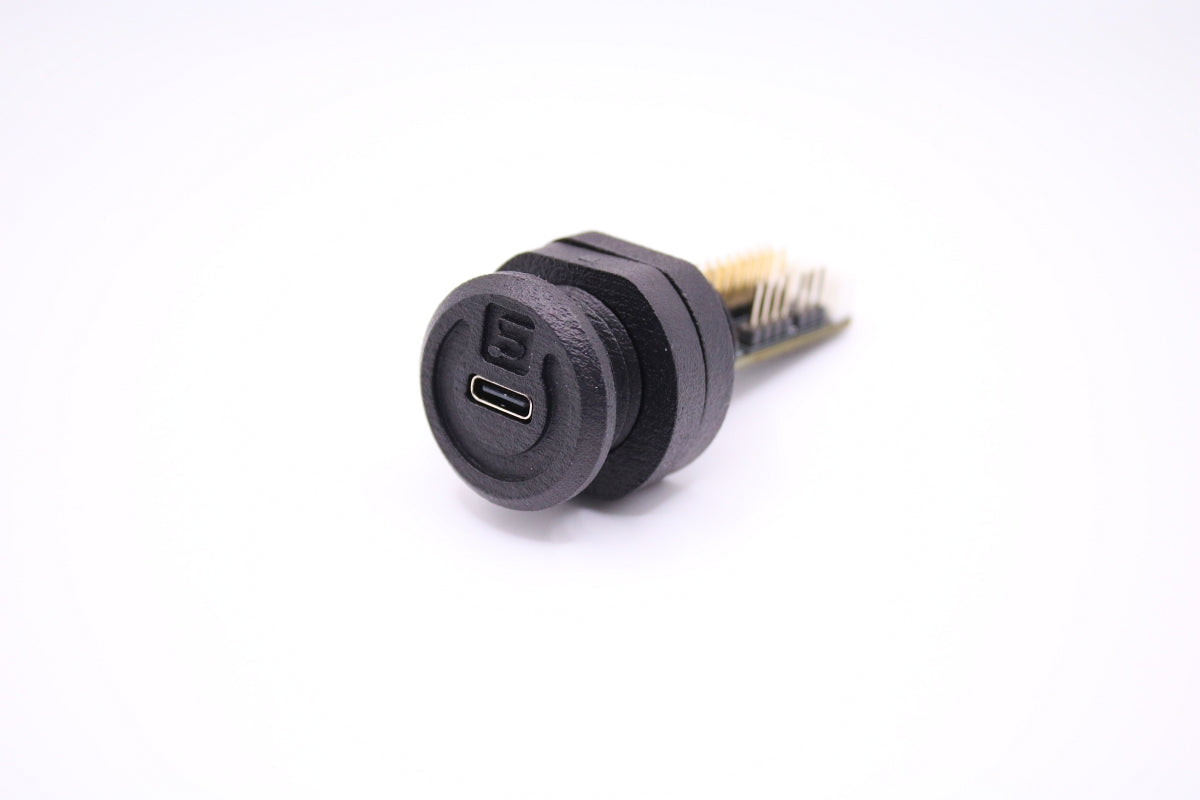

The GGEZ-Stick is an all in one USB-C panel mount connector with built in controller electronics, allowing for space efficient or small form factor DIY sticks, with minimal wire management required.

Featuring standard 20 + 4 Pin Brook style connectors, the GGEZ-Stick is ready to plug into existing Brook wiring harness you have in your current or future stick.

Features:

• USB-C (Cable not included)
• 20 +4 Pin header for Brook Style wiring harness
• 3 Pin header for addressable RGB LED string lights
• 4 Pin header for external 128x64 monochrome OLED display
• Selectable input modes (XInput, DirectInput and Nintendo Switch)
• Overclocked polling rate to 1000 Hz (1 ms) in all modes, with less than 1 ms of input latency
• Multiple SOCD cleaning modes - Neutral, Up Priority, Second Input Priority
• Left and Right stick emulation via D-pad inputs
• Open Source firmware powered by the OpenStickCommunity GP2040-CE project
• Pre-flashed with the latest stable GP2040-CE Firmware

Support:

• PC (XInput / DirectInput)

• Android (XInput)
• Nintendo Switch
• Sony PS3 (DirectInput)

• Sony PS4 (Legacy PS3 Support only)
• Fully Compatible with the Brook Wingman XB/EX series for Xbox Series S/X and PS4

Downloads:

• GGEZ-Stick - Firmware 0.6.1
• Flash Erase / Factory Reset Tool
